1.1" 20MP Focal Lens

1.1 inch 20MP Series FA Lens Catalogue Download

♦ Product Features

• The pixel resolution is 2.4um.

• High resolution with center 200IP/mm and side 160IP/mm.

• Low distortion less than 0.1%.

• The sensor size can match with 1″ 20MP and 1.1″ 12 Camera

♦ Parameter

❋Please click the item no. for datasheet download

No.

Item No

Sensor size

Iris (F#)

Focal Length (mm)

Re-solution

Pixel re-solution (um)

Mount

Dis-tortion (%)

Relative illumi-nation (%)

Filter screw size

WD (mm)

Flange back (mm)

Back focus (mm)

Effective dia(mm)

Field of view

1.1″

1″

2/3″

Front

Rear

SBS-1224-20MP

1.1“

2.2-16

20MP

2.4

<0.5

>70

M49 xP0.75

100-∞

17.526 in air

12.90

Φ38.1

Φ17.90

71.4°

60.4°

47.2°

66.7°

55.8°

43.3°

49.0°

40.0°

30.4°

SBS-1624-20MP

1.1“

2.4-16

20MP

2.4

<0.3

>65

M40.5 xP0.5

100-∞

17.526 in air

25.58

Φ34.2

Φ16.2

55.7°

46.1°

35.5°

51.5°

42.4°

32.5°

36.9°

30.0°

22.7°

SBS-2524-20MP

1.1“

2.4-16

20MP

2.4

<0.2

>70

M35.5 xP0.5

100-∞

17.526 in air

34.00

Φ28.3

Φ17.3

37.3°

30.3°

23.1°

34.1°

27.7°

18.4°

23.9°

19.2°

14.5°

SBS-3524-20MP

1.1“

2.4-16

20MP

2.4

<0.1

>70

M35.5 xP0.5

200-∞

17.526 in air

22.20

Φ21.5

Φ17.2

26.3°

21.5°

16.3°

24.4°

19.6°

14.8°

16.9°

13.6°

10.2°

SBS-5024-20MP

1.1“

2.4-16

20MP

2.4

<0.1

>70

M40.5 xP0.5

300-∞

17.526 in air

30.00

Φ26.0

Φ18.0

19.3°

15.5°

11.6°

17.6°

14.1°

10.5°

12.1°

9.7°

7.2°

♦ SBS-1224-20MP

MTF	RI

Spot Diagram	Distortion

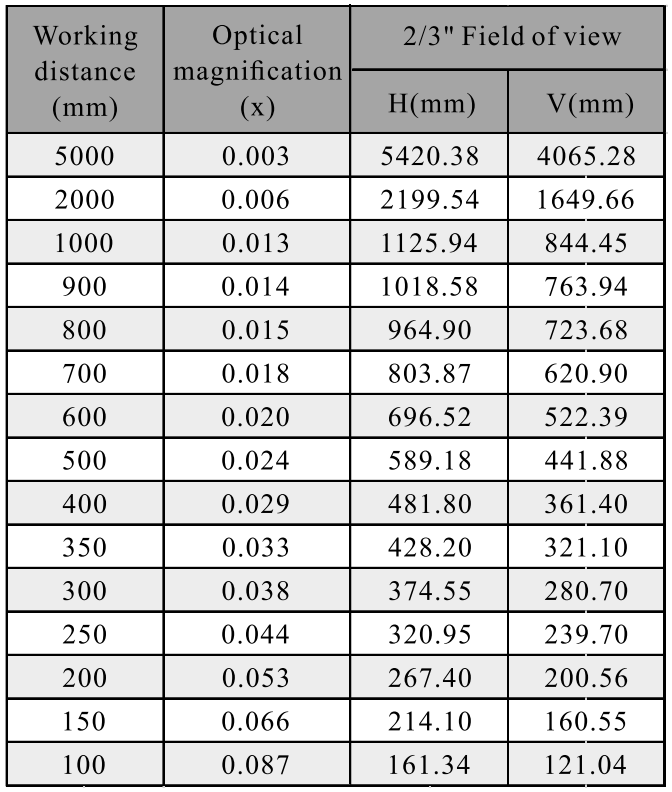

WD VS FOV	Dimensions(mm)

♦ SBS-1624-20MP

MTF	RI

Spot Diagram	Distortion

WD VS FOV	Dimensions(mm)

♦ SBS-2524-20MP

MTF	RI

Spot Diagram	Distortion

WD VS FOV	Dimensions(mm)

♦ SBS-3524-20MP

MTF	RI

Spot Diagram	Distortion

WD VS FOV	Dimensions(mm)

♦ SBS-5024-20MP

MTF	RI

Spot Diagram	Distortion

WD VS FOV	Dimensions(mm)
