Analog Controller

Analog Controller’s trigger adopts high speed opto-isolator design. Not only providing the power to the LED Lights, it can also provide the power to Camera, PLC and so on. It has high power, fast speed and high stability.

Analog Controller is a kind of Controller can supply constant stable power for the LED Lights.

SBS-AC Series Catalogue Download

♦ Products Features

• Intensity can be adjusted without level limited

• Supply power to the LED Lights, Camera, PLC etc.

• High power, fast speed, stability, small size, easy operation, with over current and short protection

• Supply stable power to compatible with the shutter speed over 1/10000

• Flexible outsourcing trigger, with continuous on/off status

♦ Item No. Description

♦ Parameter

Model Item	SBS-AC24-72-2	SBS-AC24-72-4	SBS-AC24-124-4	SBS-AC5-15-2
Output way	constant voltage
Intensity adjust	manual operation
Input voltage	AC100~240V 50/60Hz
Channels	2	4	4	2
Output voltage/current	24V, 1A (single max 1A)	24V, 2.5A (single max 2.5A)	24V, 5A (single max 1.5A)	5V, 3A (single max 1.5A)
Output power	72W	72W	124W	15W
Output connector	SM 03V-BC
Trigger voltage input	5V~24V
Trigger delay	less than 1.5ms
Usage environment	Temperature: 0–40℃ humidity: 20-85% RH (not frozen)
Storage environment	Temperature: 0–40℃ humidity: 20-85% RH (not frozen)
Cooling way	Natural cooling	Fan cooling	Fan cooling	Fan cooling

♦ Trigger Connectors

SBS-AC24-124-4

SBS-AC5-15-2

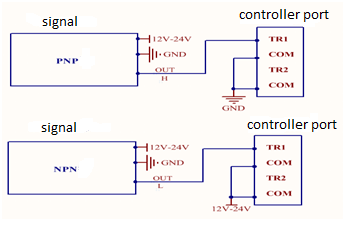

♦ Trigger Wiring

♦ Dimensions (mm)

SBS-AC24-72-2

SBS-AC24-72-4

SBS-AC24-124-4

SBS-AC5-15-2
