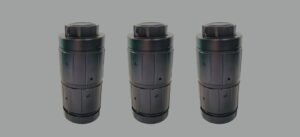

Macro Lens

It is a perfect choice for the tiny objects inspection. Customize design is also available for us. Normally, we have stock for the standard Lens and it can make the shipment within 1~3 working days, if out of stock, most of the samples can be delivered within 1 month.

Macro Lens Catalogue Download

♦ Product Features

• Short working distance, smaller field of view.

• Low distortion, in some certain working distance, the distortion is colse to zero.

• Special for tiny objects, high resolution applications.

♦ Parameter

No.	Item No	Sensor size	Focal Length (mm)	Iris (F#)	Resolution	Mount	Distortion	Relative illumi-nation (%)	Filter screw size	WD (mm)
1	SBS-MD35-5MP-2.3	2/3″	35	1.6-16	5MP	C	<0.05	>60	M30.5x P0.5	80-220
2	SBS-MD50-5MP-2.3	2/3″	50	1.6-16	5MP	C	<0.05	>80	M30.5x P0.5	100-300
3	SBS-MD25-12MP-1.1	1.1″	25	3.5-16	12MP	C	<0.05	>90	M37x P0.5	61.6-250.79
4	SBS-MD35-12MP-1.1	1.1″	35	3.0-16	12MP	C	<0.03	>90	M34x P0.5	56.21-129.8
5	SBS-MD50-12MP-1.1	1.1″	50	2.8-16	12MP	C	<0.04	>90	M34x P0.5	97.14-127.17
6	SBS-MD75-12MP-1.1	1.1″	75	2.8-16	12MP	C	<0.03	>90	M43x P0.75	202.88-344.28

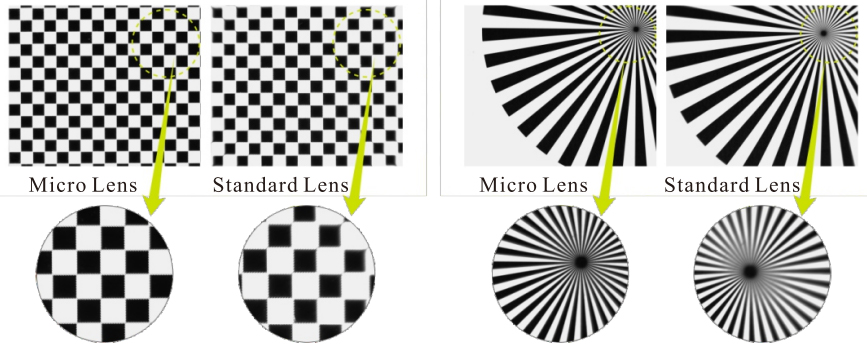

Performance Micro Lens vs Standard Lens

Distortion

Edge resolution

Macro Lens
