USB3.0 Camera New

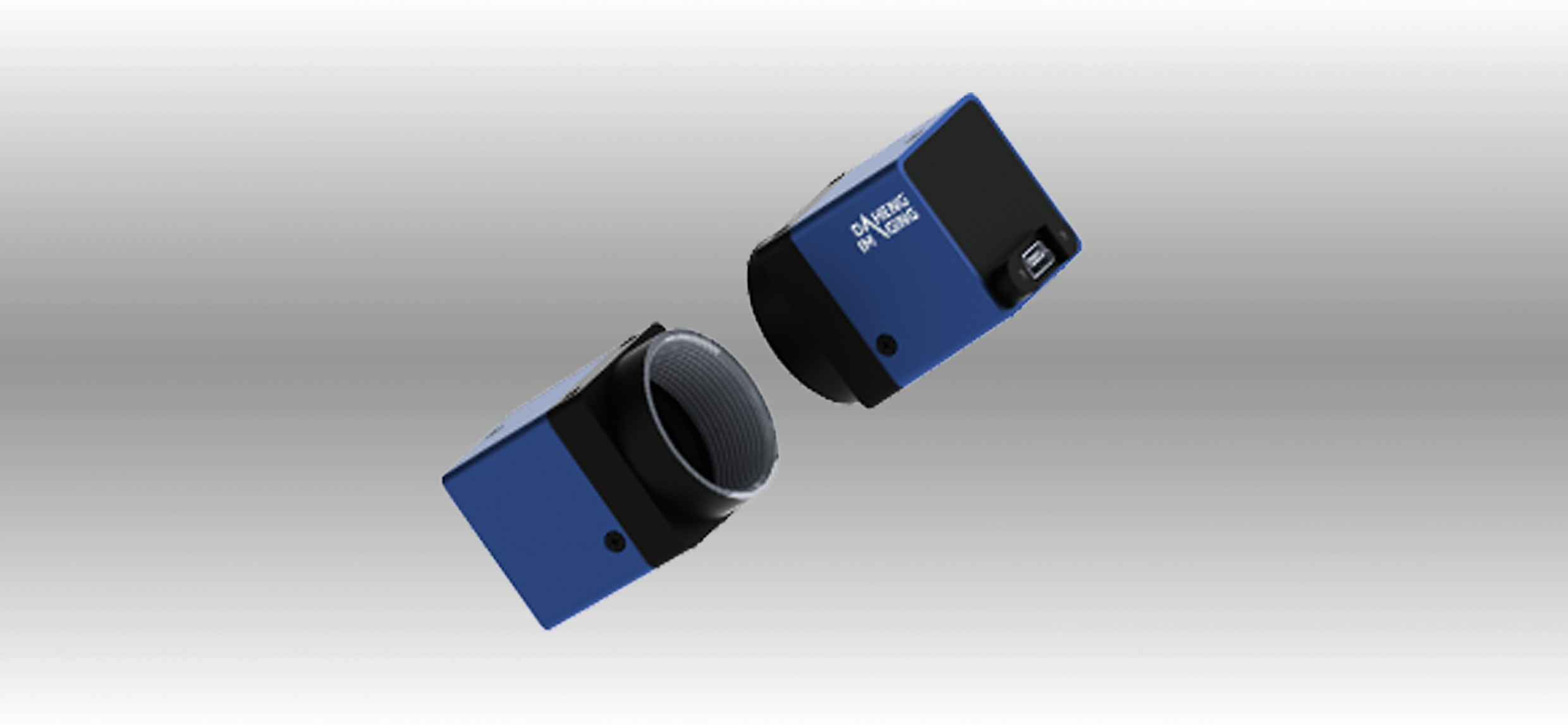

The MERCURY family’s CCD/CMOS cameras target at industrial machine vision applications, the MERCURY family cameras are covered with full metal housing and equipped with cable locking devices. Thanks to the body size 29mm x 29mm x 29mm and the weight less than 42g, the MERCURY family cameras can be easily deployed under various industrial circumstances or integrated into automatic devices like robot arms to accomplish machine vision tasks like locating, measuring, defects detecting, object recognizing, etc.

Add to quote
Category:
With the MERCURY series, you can choose the most popular data interfaces in the vision market: the popular Gigabit Ethernet interface with 100-meter cable length, the new USB 3.0 interface with plug and play capability, and the USB2.0 interface with plug and play capability. All DAHENG IMAGING’s MERCURY cameras come with an option to provide camera power and data via a single cable. They also offer separate input/output ports for triggering or flash control. The MERCURY family comes with a long list of firmware features.

  • Ultra small, light and robust
  • Compact and durable
  • 1 input and 1 output with opto-isolated, 2 programmable GPIOs
  • Support Gigabit Ethernet, USB3.0, USB2.0
  • A wide range of models available, support various CCD and CMOS sensors
  • Meet CE, RoHS and FCC (except MER-Ux Series) standards
  • Support GigEVision, USB3Vision, GenlCam and third-party software like HALCON, MERLIC and LabVIEW
MER-U3x-L
Model Interface Resolution

(H×V)

 Frame Rate Sensor Pixel Size Pixel Bit Depth Mono/Color
MER-031-860U3M/C-L USB3.0 640 × 480 860 fps 1/4″ ON PYTHON 300 global shutter CMOS 4.8μm × 4.8μm 8/10bits Mono/Color
MER-031-860U3M-L NIR USB3.0 640 × 480 860 fps 1/4″ ON PYTHON 300 global shutter CMOS 4.8μm × 4.8μm 8/10bits Mono, NIR
MER-041-436U3M/C-L USB3.0 720 × 540 438 fps 1/2.9″ Sony IMX287 global shutter CMOS 6.9μm × 6.9μm 8/10bits Mono/Color
MER-050-560U3C-L USB3.0 800 × 600 560 fps 1/3.6″ ON PYTHON 500 global shutter CMOS 4.8μm × 4.8μm 8/10bits Color
MER-051-120U3M/C-L USB3.0 808 × 608 120 fps 1/3.6″ ON PYTHON 480 global shutter CMOS 4.8μm × 4.8μm 8/10bits Mono/Color
MER-131-210U3M/C-L USB3.0 1280 × 1024 210 fps 1/2″ ON PYTHON 1300 global shutter CMOS 4.8μm × 4.8μm 8/10bits Mono/Color
MER-131-210U3M-L NIR USB3.0 1280 × 1024 210 fps 1/2″ ON PYTHON 1300 global shutter CMOS 4.8μm × 4.8μm 8/10bits Mono, NIR
MER-132-43U3M/C-L USB3.0 1292 × 964 43 fps 1/3″ Sharp RJ33J global shutter CCD 3.75μm × 3.75μm 8/12bits Mono/Color
MER-133-54U3M/C-L USB3.0 1280 × 960 54 fps 1/3″ ON AR0135 global shutter CMOS 3.75μm × 3.75μm 8/10bits Mono/Color
MER-134-93U3M/C-L USB3.0 1280 × 1024 93 fps 1/2″ ON PYTHON 1300 global shutter CMOS 4.8μm × 4.8μm 8/10bits Mono/Color
MER-160-227U3M/C-L USB3.0 1440 × 1080 227 fps 1/2.9″ Sony IMX273 global shutter CMOS 3.45μm × 3.45μm 8/10bits Mono/Color
MER-230-168U3M/C-L USB3.0 1920 × 1200 168 fps 1/1.2″ Sony IMX174 global shutter CMOS 5.86μm × 5.86μm 8/10bits Mono/Color
MER-231-41U3M/C-L USB3.0 1920 × 1200 41 fps 1/1.2″ Sony IMX249 global shutter CMOS 5.86μm × 5.86μm 8/10bits Mono/Color
MER-301-125U3M/C-L USB3.0 2048 × 1536 125 fps 1/1.8″ Sony IMX252 global shutter CMOS 3.45μm × 3.45μm 8/10bits Mono/Color
MER-302-56U3M/C-L USB3.0 2048 × 1536 56 fps 1/1.8″ Sony IMX265 global shutter CMOS 3.45μm × 3.45μm 8/10bits Mono/Color
MER-500-14U3M/C-L USB3.0 2592 × 1944 14 fps 1/2.5″ ON MT9P031/MT9P006 rolling shutter CMOS 2.2μm × 2.2μm 8/10bits Mono/Color
MER-502-79U3M-L POL USB3.0 2448 × 2048 79 fps 2/3″ Sony IMX250MZR global shutter CMOS 3.45μm × 3.45μm 8/10bits Polarization
MER-502-79U3M/C-L USB3.0 2448 × 2048 79 fps 2/3″ Sony IMX250 global shutter CMOS 3.45μm × 3.45μm 8/10bits Mono/Color
MER-503-36U3M/C-L USB3.0 2448 × 2048 36 fps 2/3″ Sony IMX264 global shutter CMOS 3.45μm × 3.45μm 8/10bits Mono/Color
MER-630-60U3M/C-L USB3.0 3088×2064 60 fps 1/1.8″ Sony IMX178 rolling shutter CMOS 2.4μm × 2.4μm 8/10bits Mono/Color
MER-1070-14U3M/C-L USB3.0 3840 × 2748 14 fps 1/2.3″ ON MT9J003 rolling shutter CMOS 1.67μm × 1.67μm 8/12bits Mono/Color
MER-1220-32U3M/C-L USB3.0 4024 × 3036 32.3 fps 1/1.7″ Sony IMX226 rolling shutter CMOS 1.85μm × 1.85μm 8/12bits Mono/Color
MER-1520-13U3C-L USB3.0 4608 × 3288 13 fps 1/2.3″ ON MT9F002 rolling shutter CMOS 1.4μm × 1.4μm 8/12bits Color
MER-1810-21U3C-L USB3.0 4912 × 3684 21 fps 1/2.3″ ON AR1820 rolling shutter CMOS 1.25μm × 1.25μm 8/12bits Color
MER-2000-19U3M/C-L USB3.0 5496 × 3672 19.6 fps 1″ Sony IMX 183 rolling shutter CMOS 2.4μm × 2.4μm 8/12bits Mono/Color
Mechanical Specifications Electrical Specifications
Weight                                53g

Dimensions                        29mm × 29mm × 29mm



 Power requirement             5 VDC (USB3.0)

I/Os                                     NULL

Data interface                     USB3.0 with locked

Power consumption           ≤2.7W@5VDC
Environmental Specifications Optical Specifications
Operating temp                  0°C ~ +45°C

Operating humidity           10% ~ 80%

Storage temp                    -20°C ~ +70°C

 Lens mount                 C / CS –Mount
